Smooth Cover

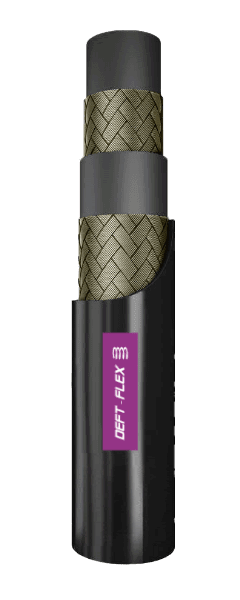

R16 Smooth
Applications:
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | Code |
| DEF 321116-06 | -04 | 6.4 | 1/4'' | 6.2-7.0 | 12.3 MAX. | 14.5 MAX. | 400 | 5800 | 1600 | 23200 | 50 | 0.290 | 50/100 | DPF2T-04 |
| DEF 321116-08 | -05 | 8.0 | 5/16'' | 7.7-8.5 | 13.3 MAX. | 15.7 MAX. | 350 | 5075 | 1400 | 20300 | 55 | 0.330 | 50/100 | DPF2T-05 |
| DEF 321116-10 | -06 | 9.5 | 3/8'' | 9.3-10.1 | 15.9 MAX. | 18.8 MAX. | 330 | 4785 | 1320 | 19140 | 65 | 0.420 | 50/100 | DPF2T-06 |
| DEF 321116-12 | -08 | 12.7 | 1/2'' | 12.3-13.5 | 19.0 MAX. | 22.0 MAX. | 275 | 3987.5 | 1100 | 15950 | 90 | 0.550 | 50/100 | DPF2T-08 |
| DEF 321116-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | 22.6 MAX. | 25.4 MAX. | 250 | 3625 | 1000 | 14500 | 100 | 0.650 | 50/100 | DPF2T-10 |
| DEF 321116-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 26.3 MAX. | 29.0 MAX. | 215 | 3117.5 | 860 | 12470 | 120 | 0.790 | 50/100 | DPF2T-12 |
| DEF 321116-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 34.0 MAX. | 36.6 MAX. | 165 | 2392.5 | 660 | 9570 | 150 | 1.180 | 50/100 | DPF2T-16 |
Cover Type: Smooth
Packing Type: Roll, Pallet, Reel
Outward Appearance: black
