Industrial Hose

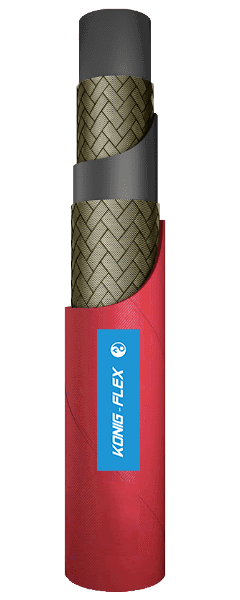

Steam Hose 2SW

Applicable Specs:

BS 5342 Type-2
EXCEEDS IS 10655
ISO 6134 Type2

Applications:

Internal hose:

Black colour, EPDM rubber resistant to saturated steam

Reinforcement:

2 layers of steel wire braid

Covering:

Red colour, EPDM resistant to ozone and weather

Fittings:

Ferrule: No-skive Type DPF2T, Insert: DPX2XX (X: Can choose), Certificate: MSHA & BV & GOST & MA & DEKRA & IATF 16949, & DAKKS & SGS Approved

Working Pressure:

20 Bar / 290 PSI

Impulse times:

Temperature:

High Temperature steam lines up to +210 °C (intermittent +230 °C), High Temperature transport liquid, -40 °C to +135 °C (intermittent 155 °C), Prolonged operation at extreme temperatures will reduce hoses life

Media:

Water, Heated steam


Part Number	Hose Size			I.D.	R.O.D.	O.D.	Operating Pressure		Burst Pressure		Bend Radius	Weight	Length Per PCS	Ferrule
I.D.	Dash Size	mm	inch	mm	mm	mm	bar	psi	bar	psi	mm	kgs/m	meter	Code
KON 713102-10	-06	9.5	3/8''	9.3-10.1	14.5-15.7	19.7 MAX.	20	290	80	1160	130	0.560	50/100	DPF2T-06
KON 713102-12	-08	12.7	1/2''	12.3-13.5	17.5-19.1	23.0 MAX.	20	290	80	1160	180	0.640	50/100	DPF2T-08
KON 713102-16	-10	16.0	5/8''	15.5-16.7	20.6-22.2	26.2 MAX.	20	290	80	1160	200	0.732	50/100	DPF2T-10
KON 713102-19	-12	19.0	3/4''	18.6-19.8	24.6-26.2	30.1 MAX.	20	290	80	1160	240	0.930	50/100	DPF2T-12
KON 713102-25	-16	25.4	1''	25.0-26.4	32.5-34.1	38.9 MAX.	20	290	80	1160	300	1.360	50/100	DPF2T-16
