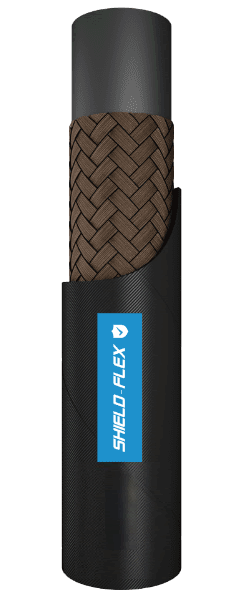

DIN EN 854 1TE Textile Braided Hydraulic Hose
Crafted with seamless synthetic rubber, the DIN EN 854 1TE Hydraulic Hose ensures uniformity without joints. With a single textile braid, it offers reliable performance, complemented by an anti-abrasive synthetic rubber covering.
User-friendly fittings, such as the no-skive Type PUSH-ON-R6/1TE ferrule and PUSH-ON-R6/1TE insert, provide customization options (X: Can choose). Holding certifications from MSHA, BV, GOST, MA, DEKRA, IATF 16949, DAKKS, and SGS, it adheres to industry standards.
Featuring a working pressure range of 12 to 35 Bar (174 to 507 PSI), the hose operates effectively in temperatures from -40 °C to +100 °C (intermittent 120 °C). Designed for versatility, it accommodates hydraulic fluids, petroleum-based oils, glycol-water solutions, water, and lubricants.
In summary, the DIN EN 854 1TE Hydraulic Hose is a reliable and adaptable solution for various hydraulic applications.
User-friendly fittings, such as the no-skive Type PUSH-ON-R6/1TE ferrule and PUSH-ON-R6/1TE insert, provide customization options (X: Can choose). Holding certifications from MSHA, BV, GOST, MA, DEKRA, IATF 16949, DAKKS, and SGS, it adheres to industry standards.
Featuring a working pressure range of 12 to 35 Bar (174 to 507 PSI), the hose operates effectively in temperatures from -40 °C to +100 °C (intermittent 120 °C). Designed for versatility, it accommodates hydraulic fluids, petroleum-based oils, glycol-water solutions, water, and lubricants.
In summary, the DIN EN 854 1TE Hydraulic Hose is a reliable and adaptable solution for various hydraulic applications.
Applications:
Internal hose:
Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement:
1 layer of textile braid
Covering:
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Fittings:
Ferrule: No-skive Type PUSH-ON-R6/1TE, Insert: PUSH-ON-R6/1TE (X: Can choose), Certificate: MSHA & BV & GOST & MA & DEKRA & IATF 16949 & DAKKS & SGS Approved
Working Pressure:
12–35 Bar / 174–507PSI
Impulse times:
Temperature:
-40 °C to +100 °C (intermittent 120 °C), -40 °C to +70 °C for water based fluids, 0 °C to +70 °C hot air, Prolonged operation at extreme temperatures will reduce hoses life
Media:
Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants.
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | Code |
| SMJ 211106-05 | -03 | 4.8 | 3/16'' | 4.4-5.2 | / | 10.0-11.6 | 35 | 507.5 | 140 | 2030 | 50 | 0.100 | 50/100 | PUSH-ON-R6/1TE-03 |
| SMJ 211106-06 | -04 | 6.4 | 1/4'' | 5.9-6.9 | / | 11.6-13.5 | 28 | 406 | 112 | 1624 | 65 | 0.110 | 50/100 | PUSH-ON-R6/1TE-04 |
| SMJ 211106-08 | -05 | 8.0 | 5/16'' | 7.4-8.4 | / | 13.1-15.1 | 28 | 406 | 112 | 1624 | 75 | 0.130 | 50/100 | PUSH-ON-R6/1TE-05 |
| SMJ 211106-10 | -06 | 9.5 | 3/8'' | 9.0-10.0 | / | 14.7-16.7 | 28 | 406 | 112 | 1624 | 75 | 0.160 | 50/100 | PUSH-ON-R6/1TE-06 |
| SMJ 211106-12 | -08 | 12.7 | 1/2'' | 12.1-13.3 | / | 17.7-20.6 | 28 | 406 | 112 | 1624 | 100 | 0.220 | 50/100 | PUSH-ON-R6/1TE-08 |
| SMJ 211106-16 | -10 | 16.0 | 5/8'' | 15.3-16.5 | / | 21.9-23.9 | 24 | 348 | 96 | 1392 | 125 | 0.270 | 50/100 | PUSH-ON-R6/1TE-10 |
| SMJ 211106-19 | -12 | 19.0 | 3/4'' | 18.2-19.8 | / | 25.4-27.8 | 21 | 304.5 | 84 | 1218 | 150 | 0.330 | 50/100 | PUSH-ON-R6/1TE-12 |
| SMJ 211106-25 | -16 | 25.4 | 1'' | 24.6-26.2 | / | 32.8-35.9 | 12.0 | 174 | 48 | 696 | 155.0 | 0.5 | 50/100 | PUSH-ON-R6/1TE-16 |
Cover Type: Wrapped
Packing Type: Roll, Pallet, Reel
Outward Appearance: black
