DIN EN 854

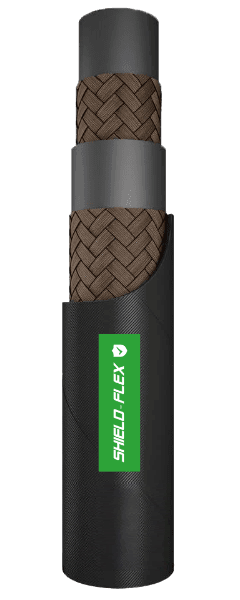

DIN EN 854 2TE Textile Braided Hydraulic Hose
DIN EN 854 2TE Hydraulic Hose embodies efficiency in a streamlined design. Crafted from seamless synthetic rubber, the internal hose guarantees uniform thickness without joints.
With dual layers of textile braid reinforcement, this hose delivers reliable performance in hydraulic applications. Its anti-abrasive synthetic rubber covering enhances durability, resisting oils, fuels, and atmospheric conditions.
Equipped with convenient fittings—the no-skive Type PUSH-ON -2TE ferrule and PUSH-ON-2TE insert, customizable with X—this hose holds prestigious certifications: MSHA, BV, GOST, MA, DEKRA, IATF 16949, DAKKS, and SGS, ensuring conformity to industry standards.
Applications:
Internal hose:
Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement:
2 layers of textile braid
Covering:
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Fittings:
Ferrule: No-skive Type PUSH-ON -2TE, Insert: PUSH-ON-2TE (X: Can choose), Certificate: MSHA & BV & GOST & MA & DEKRA & IATF 16949 & DAKKS & SGS Approved
Working Pressure:
35–80 Bar / 508–1160 PSI
Impulse times:
Temperature:
-40 °C to +100 °C (intermittent 120 °C)， -40 °C to +70 °C for water based fluids， 0 °C to +70 °C hot air， Prolonged operation at extreme temperatures will reduce hoses life
Media:
Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | Code |
| SMJ 211103-05 | -03 | 4.8 | 3/16" | 4.4-5.2 | / | 11.0-12.6 | 80 | 1160 | 320 | 4640 | 25 | 0.200 | 50/100 | PUSH-ON-2TE-03 |
| SMJ 211103-06 | -04 | 6.4 | 1/4'' | 5.9-6.9 | / | 12.6-14.2 | 75 | 1087.5 | 300 | 4350 | 40 | 0.160 | 50/100 | PUSH-ON-2TE-04 |
| SMJ 211103-08 | -05 | 8.0 | 5/16'' | 7.4-8.4 | / | 14.1-15.7 | 68 | 986 | 272 | 3944 | 50 | 0.180 | 50/100 | PUSH-ON-2TE-05 |
| SMJ 211103-10 | -06 | 9.5 | 3/8'' | 9.0-10.0 | / | 15.7-17.3 | 63 | 913.5 | 252 | 3654 | 60 | 0.190 | 50/100 | PUSH-ON-2TE-06 |
| SMJ 211103-12 | -08 | 12.7 | 1/2'' | 12.1-13.3 | / | 18.7-20.7 | 58 | 841 | 232 | 3364 | 70 | 0.260 | 50/100 | PUSH-ON-2TE-08 |
| SMJ 211103-16 | -10 | 16.0 | 5/8'' | 15.3-16.5 | / | 22.9-24.9 | 50 | 725 | 200 | 2900 | 90 | 0.350 | 50/100 | PUSH-ON-2TE-10 |
| SMJ 211103-19 | -12 | 19.0 | 3/4'' | 18.2-19.8 | / | 26.0-28.0 | 45 | 652.5 | 180 | 2610 | 110 | 0.400 | 50/100 | PUSH-ON-2TE-12 |
| SMJ 211103-25 | -16 | 25.4 | 1'' | 24.6-26.2 | / | 32.9-35.9 | 40.0 | 580 | 160 | 2320 | 150.0 | 0.6 | 50/100 | PUSH-ON-2TE-16 |
Cover Type: Wrapped
Packing Type: Roll, Pallet, Reel
Outward Appearance: black red green blue
